CPP

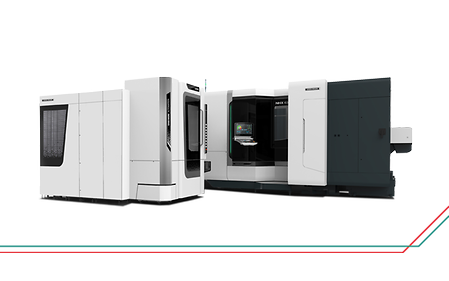

The entry-level flexible pallet storage solution for up to 4 machines
- Handling of workpieces up to ø 2,000 x 1,600 mm, 3,000 kg
- Up to 11 pallets and max. four machines with two setup stations
- Operate via machine HMI or via the DMGMORI master computer HMI
- MCC-TMS tool management system
Videos
Technical data
Technical data
Workpiece
Max. workpiece weight kg
Max. workpiece size mm
Pallets
Pallet size mm
Max. number of pallet stations
(storage units + setup station)
(storage units + setup station)
INH 63
INH 80
NHX 4000
NHX 5000
NHX 5500
NHX 6300
NHX 8000
NHX 10000
NH 4000
NH 5000
NH 6300
NHC 4000*
NHC 5000*
NHC 5500*
NHC 6300*
NHC 8000*
● available
* Only available in selected countries
NHC 4000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis stroke
560 mm
Max. Y-axis stroke
560 mm
Max. Z-axis stroke
660 mm
Max. workpiece diameter
630 mm
Max. workpiece height
900 mm
Max. workpiece weight
400 kg
Control & software alternatives
MAPPS Fanuc
Highlights
Unrivalled dynamics
- Up to 60,000 mm/min speed and up to 0.87 g acceleration
- Powerfull spindle as standard with 12,000 rpm and 110 Nm
- Direct drive table available with 100 rpm
Highest rigidity
- Thick, high-rigidity bed
- High rigidity bed by stepped X-axis guideways
- Large diameter spindle bearing of 80 mm
Compact
- Compact horizontal machining centre with a footprint of just 11.5 m²
- Pallet size 400 × 400 mm
- Quick and easy to set up thanks to its three-point support
Optimal precision
- Spindle with symmetric design
NHC 5500
Fusing a diverse range of functions with elegant design
Max. X-axis stroke
800 mm
Max. Y-axis stroke
800 mm
Max. Z-axis stroke
880 mm
Max. workpiece diameter
800 mm
Max. workpiece height
1,100 mm
Max. workpiece weight
700 kg
Control & software alternatives
MAPPS Mitsubishi
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
- Max. acceleration: X-, Y- and Z-axes: 0.73 / 0.80 / 0.93 G {7.2 / 7.8 / 9.1 m/s2 (23.6 / 25.6 / 29.9 ft/s2)}
- Cutting feedrate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- Draw-back function for through-spindle coolant
NHC 5000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis stroke
730 mm
Max. Y-axis stroke
730 mm
Max. Z-axis stroke
880 mm
Max. workpiece diameter
800 mm
Max. workpiece height
1,000 mm
Max. workpiece weight
700 kg
Control & software alternatives
MAPPS Fanuc
Highlights
Unrivalled dynamics
- Up to 60,000 mm/min speed and up to 0.87 g acceleration
- Powerfull spindle as standard with 12,000 rpm and 110 Nm
- Direct drive table available with 100 rpm
Highest rigidity
- Thick, high-rigidity bed
- High rigidity bed by stepped X-axis guideways
- Large diameter spindle bearing of 80 mm
Compact
- Compact horizontal machining centre with a footprint of just 15.1 m²
- Pallet size 500 × 500 mm
- Quick and easy to set up thanks to its three-point support
Optimal precision
- Spindle with symmetric design
NHC 6300
Fusing a diverse range of functions with elegant design
Max. X-axis stroke
1,050 mm
Max. Y-axis stroke
900 mm
Max. Z-axis stroke
1,030 mm
Max. workpiece diameter
1,050 mm
Max. workpiece height
1,300 mm
Max. workpiece weight
1,500 kg
Control & software alternatives
MAPPS Mitsubishi
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
- Max. acceleration X-, Y- and Z-axes: 0.64 / 0.93 / 0.70 G {6.3 / 9.1 / 6.9 m/s2 (20.7 / 29.9 / 22.6 ft/s2)}
- Cutting feedrate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
Highest rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High Precision equipment
- Spindle with symmetric design
NHC 8000
Fusing a diverse range of functions with elegant design
Max. X-axis stroke
1,400 mm
Max. Y-axis stroke
1,200 mm
Max. Z-axis stroke
1,350 mm
Max. workpiece diameter
1,450 mm
Max. workpiece height
1,450 mm
Max. workpiece weight
2,200 kg
Control & software alternatives
MAPPS Fanuc
NHX 4000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis stroke
560 mm
Max. Y-axis stroke
560 mm
Max. Z-axis stroke
660 mm
Max. workpiece diameter
630 mm
Max. workpiece height
900 mm
Max. workpiece weight
400 kg
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 4000 / NHX 5000 3rd Gen.
Dynamic
- Up to 60,000 mm/min feed drive and up to 1.2 g acceleration.
- Powerfull spindle as standard with 15,000 rpm and 111/116 Nm
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed by stepped X-axis guideways.
- Large diameter spindle bearing of 70 mm
Compact
- Compact horizontal machining centre with a footprint of just 11.2 m²
- Pallet size 400 x 400 mm
- Quick and easy to set up thanks to ist three-point support
Precise
- Direct scale feedback with 0.01 µm resolution
NHX 5000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis stroke
730 mm
Max. Y-axis stroke
730 mm
Max. Z-axis stroke
880 mm
Max. workpiece diameter
800 mm
Max. workpiece height
1,000 mm
Max. workpiece weight
700 kg
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 4000 / NHX 5000 3rd Gen.
Dynamic
- Up to 60,000 mm/min feed drive and up to 1.2 g acceleration.
- Powerfull spindle as standard with 15,000 rpm and 111/116 Nm
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed by stepped X-axis guideways.
- Large diameter spindle bearing of 70 mm
Compact
- Compact horizontal machining centre with a footprint of just 14.7 m²
- Pallet size 500 x 500 mm
- Quick and easy to set up thanks to ist three-point support
Precise
- Direct scale feedback with 0.01 µm resolution
NHX 5500
Fusing a diverse range of functions with elegant design
Max. X-axis stroke
800 mm
Max. Y-axis stroke
800 mm
Max. Z-axis stroke
880 mm
Max. workpiece diameter
800 mm
Max. workpiece height
1,100 mm
Max. workpiece weight
1,000 kg
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
- Max. acceleration: X-, Y- and Z-axes: 0.73 / 0.80 / 0.93 G {7.2 / 7.8 / 9.1 m/s2 (23.6 / 25.6 / 29.9 ft/s2)}
- Cutting feedrate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- High-resolution direct scale feedback
- Draw-back function for through-spindle coolant
NHX 6300
Fusing a diverse range of functions with elegant design
Max. X-axis stroke
1,050 mm
Max. Y-axis stroke
900 mm
Max. Z-axis stroke
1,030 mm
Max. workpiece diameter
1,050 mm
Max. workpiece height
1,300 mm
Max. workpiece weight
1,500 kg
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
- Max. acceleration X-, Y- and Z-axes: 0.64 / 0.93 / 0.70 G {6.3 / 9.1 / 6.9 m/s2 (20.7 / 29.9 / 22.6 ft/s2)}
- Cutting feedrate X-, Y- and Z-axes: 60 m/min (2,362.2 ipm)
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- High-resolution direct scale feedback
- Draw-back function for through-spindle coolant
NHX 8000
Absolute confidence for machining of large and difficult-to-cut materials
Max. X-axis stroke
1,400 mm
Max. Y-axis stroke
1,200 mm
Max. Z-axis stroke
1,350 mm
Max. workpiece diameter
1,450 mm
Max. workpiece height
1,450 mm
Max. workpiece weight
2,200 kg
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 8000 – 6-cylinder block machining
High Precision
- Driven at the Center of Gravity
- Box-in-Box Construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.82 / 0.57 / 0.69 G {8.0 / 5.6 / 6.7 m/s2 (26.2 / 18.4 / 22.0 ft/s2)}
- Rapid traverse rate X-, Y- and Z-axes: 50 m/min (1,968.5 ipm)
- Cutting feedrate X-, Y- and Z-axes: 50 m/min (1,968.5 ipm)
High cutting performance
- High-output spindle with a max. output of 40 kW (53.3 HP)
- Max. spindle torque: 1,309 N・m (965.5 ft・lbf) <15%ED> (option)
NHX 10000
Expert on machining of large and difficult-to-cut workpieces
Max. X-axis stroke
1,700 mm
Max. Y-axis stroke
1,400 mm
Max. Z-axis stroke
1,510 mm
Max. workpiece diameter
2,000 mm
Max. workpiece height
1,600 mm
Max. workpiece weight
3,000 kg
Control & software alternatives
MAPPS Fanuc
Highlights
High precision
- Driven at the Center of Gravity
- Box-in-Box construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.62 / 0.51 / 0.45 G {6.1 / 5.0 / 4.4 m/s2 (20.0 / 16.4 / 14.4 ft/s2)}
- Rapid traverse rate X, Y and Z-axes: 50 m/min (1,968.5 ipm)
- Cutting feedrate X, Y and Z axes: 50 m/min (1,968.5 ipm)
Outstanding cutting performance
- Standard spindle with an output of up to 40 kW (53.3 HP)
- Max. spindle torque: 1,413 N・m (1,042.2 ft・lbf) <10%ED> (option)
NH 4000 DCG
Presenting the ideal machining center
Max. X-axis stroke
560 mm
Max. Y-axis stroke
560 mm
Max. Z-axis stroke
630 mm
Max. workpiece diameter
630 mm
Max. workpiece height
900 mm
Max. workpiece weight
400 kg
Control & software alternatives
MAPPS Fanuc
NH 5000 DCG
Achieving highest-level speed in the world
Max. X-axis stroke
730 mm
Max. Y-axis stroke
760 mm
Max. Z-axis stroke
850 mm
Max. workpiece diameter
800 mm
Max. workpiece height
1,000 mm
Max. workpiece weight
500 kg
Control & software alternatives
MAPPS Fanuc
NH 6300 DCGII
Horizontal machining center answering a wide range of requirements from heavy-duty cutting to high-speed cutting
Max. X-axis stroke
1,050 mm
Max. Y-axis stroke
900 mm
Max. Z-axis stroke
980 mm
Max. workpiece diameter
1,050 mm
Max. workpiece height
1,300 mm
Max. workpiece weight
1,500 kg
Control & software alternatives
MAPPS Fanuc
INH 63
Precision, productivity and flexibility in compact body
Max. X-axis stroke
1,050 mm
Max. Y-axis stroke
1,100 mm
Max. Z-axis stroke
1,050 mm
Max. workpiece diameter
1,070 mm
Max. workpiece height
1,000 mm
Max. workpiece weight
1,000 kg
Control & software alternatives
MAPPS Fanuc
Highlights
Machine structure with twin ball screws for X, Y, Z and slanted column
Large working area
- X / Y / Z-axis travel: 1,050 / 1,100 / 1,050 mm, 630 × 630 mm pallet size
- Workpieces 5-axis up to ø 1,070 × 1,000 mm / 1,000 kg
(ø 1,070 × 1,300 mm / 1,500 kg for machining without A-axis functionality possible)
36 month warranty with unlimited spindle hours
- powerMASTER spindle with 12,000 rpm, 808 Nm and 85 kW (10 %) as standard. 549Nm (High-Speed) and 1,414Nm (High Torque) available as options
Highly rigid & dynamic design
- Twin ball screws for X, Y, Z and slanted column
Universal pallet design: combination of NH 6300 DCG, NHX 6300 and INH 63 possible
LPP-pallet handling, high productivity pallet storage solution
- Up to 99 pallets
- Operated via machine HMI or via the DMG MORI master
- LPS 4 is equipped as standard
- MCC-TMS is equipped as option
Workpiece handling
- Robot system MATRIS. no programming required
zero-sludgeCOOLANT pro (standard)
- For low-maintenance operation over long periods of time
- Use of innovative large-capacity vertical coolant tank
- Perfect separation of floating
In-Machine Coolant (standard)
- Hybrid cleaning method to avoidchip accumulation
- Fixed outlets on ceiling, sides and spindle nose
- Controlled ceiling nozzles direct the coolant specifically to the areas,where chips can accumulate
- New: 2 frequency-controlled high-efficiency pumps with control valves for the high- and low-pressure range
INH 80
Precision, productivity and flexibility in compact body
Max. X-axis stroke
1,400 mm
Max. Y-axis stroke
1,350 mm
Max. Z-axis stroke
1,350 mm
Max. workpiece diameter
1,500 mm
Max. workpiece height
1,300 mm
Max. workpiece weight
2,000 kg
Control & software alternatives
MAPPS Fanuc
Highlights
Combining High rigidity & High speed for Productivity
- Highly rigid machine structure with twin ball screw & slanted column
- 3-points support
- Thorough cooling measures
powerMASTER Spindle for Oustanding Rigidity
- With a max. torque of 808 N・m as standard and 1,414 N・m as option
- Suitable for heavy-duty and high-speed machining
- High reliability with 3-year warranty
Unique Solutions against Chip, Coolant, Mist Troubles to Advance Process Integration & Automation
- For continuous unmanned operation over long periods
- zero-sludge COOLANT pro - Innovative Vertical Coolant Tank
- Hybrid cleaning method against chip accumulation
Enable mounting large workpiece for 5-axis table
- Workpiece size of ø 1,500 mm × 1,300 mm
- Pallet loading capacity 2,000 kg
