NHX 10000

NHX 10000

Expert on machining of large and difficult-to-cut workpieces

Max. X travels
1,700 mm
Max. Y travels
1,400 mm
Max. Z travels
1,510 mm
Max. table load
5,000 kg
Table length
1,000 mm
Table width
1,000 mm
Control & software alternatives
CELOS/MAPPS CELOS/FANUC

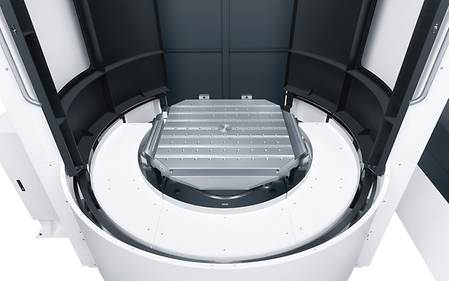

Highlights

High precision

  • Driven at the Center of Gravity
  • Box-in-Box construction

High speed

  • Max. acceleration X-, Y- and Z-axes: 0.62 / 0.51 / 0.45 G {6.1 / 5.0 / 4.4 m/s2 (20.0 / 16.4 / 14.4 ft/s2)}
  • Rapid traverse rate X, Y and Z-axes: 50 m/min (1,968.5 ipm)
  • Cutting feedrate X, Y and Z axes: 50 m/min (1,968.5 ipm)

Outstanding cutting performance

  • Standard spindle with an output of up to 40 kW (53.3 HP)
  • Max. spindle torque: 1,413 N・m (1,042.2 ft・lbf) <10%ED> (option)
Application Examples
Automation

Standard automation and customised solutions in the VERTICO design

Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:

Control & Software
Service & Training
Downloads & Technical Data
Work Area
Max. X travels
1,700 mm
Max. Y travels
1,400 mm
Max. Z travels
1,510 mm
Table dimensions
Max. table load
5,000 kg
Table length
1,000 mm
Table width
1,000 mm
Workpiece dimensions
Max. worpiece height
1,600 mm
Spindle
Standard speed
12,000 rpm
Max. speed (Option)
16,000 rpm
Drive power rating (100% DC)
45 kW (AC)
Torque (100% DC)
637 Nm
Tool magazine
Capacity
60
Max. capacity
330
Rapid traverse
Max. X axis
50 m/min
Max. Y axis
50 m/min
Max. Z axis
50 m/min
